I. Product Definition

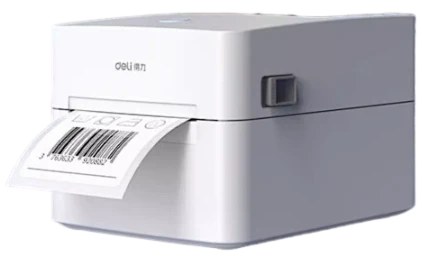

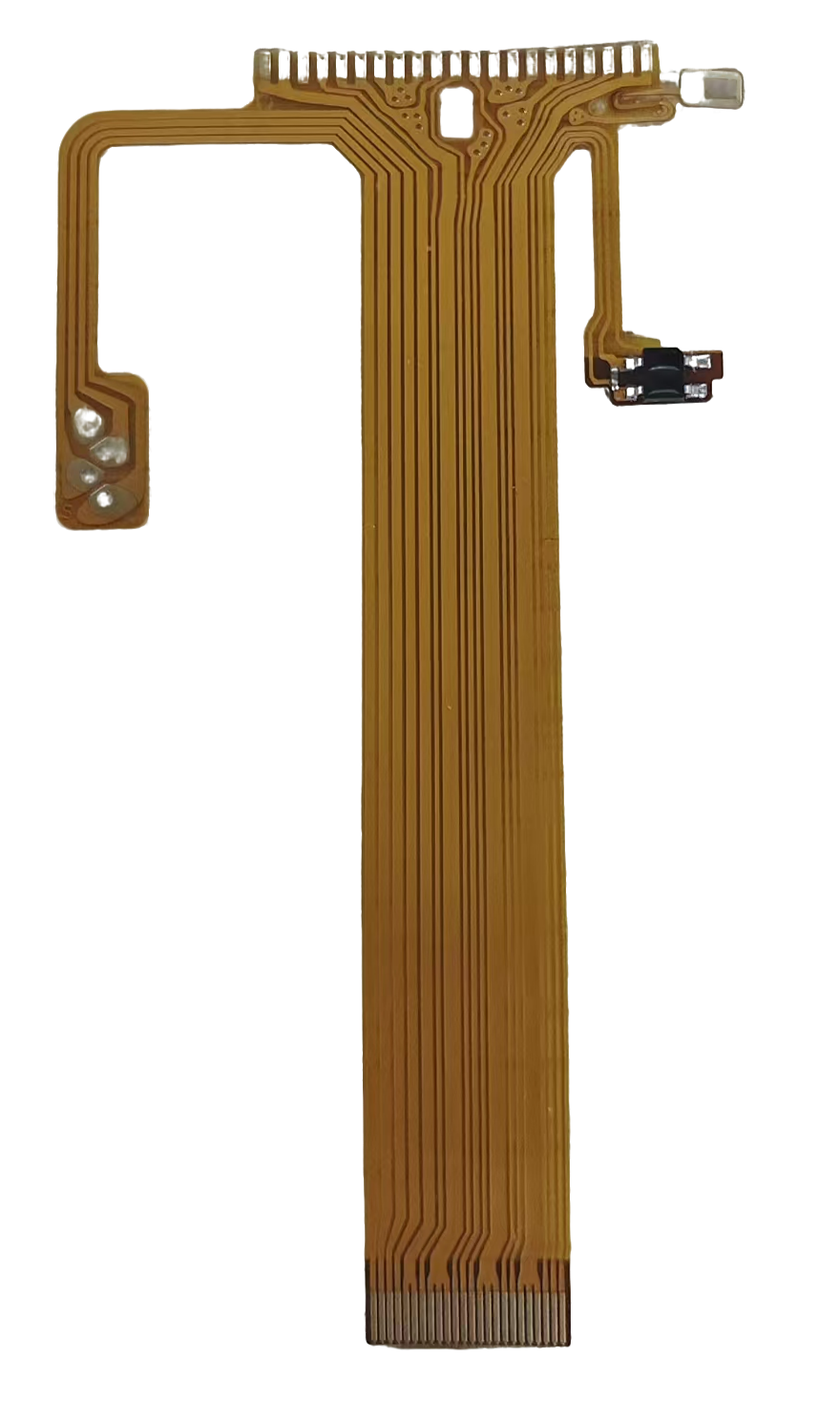

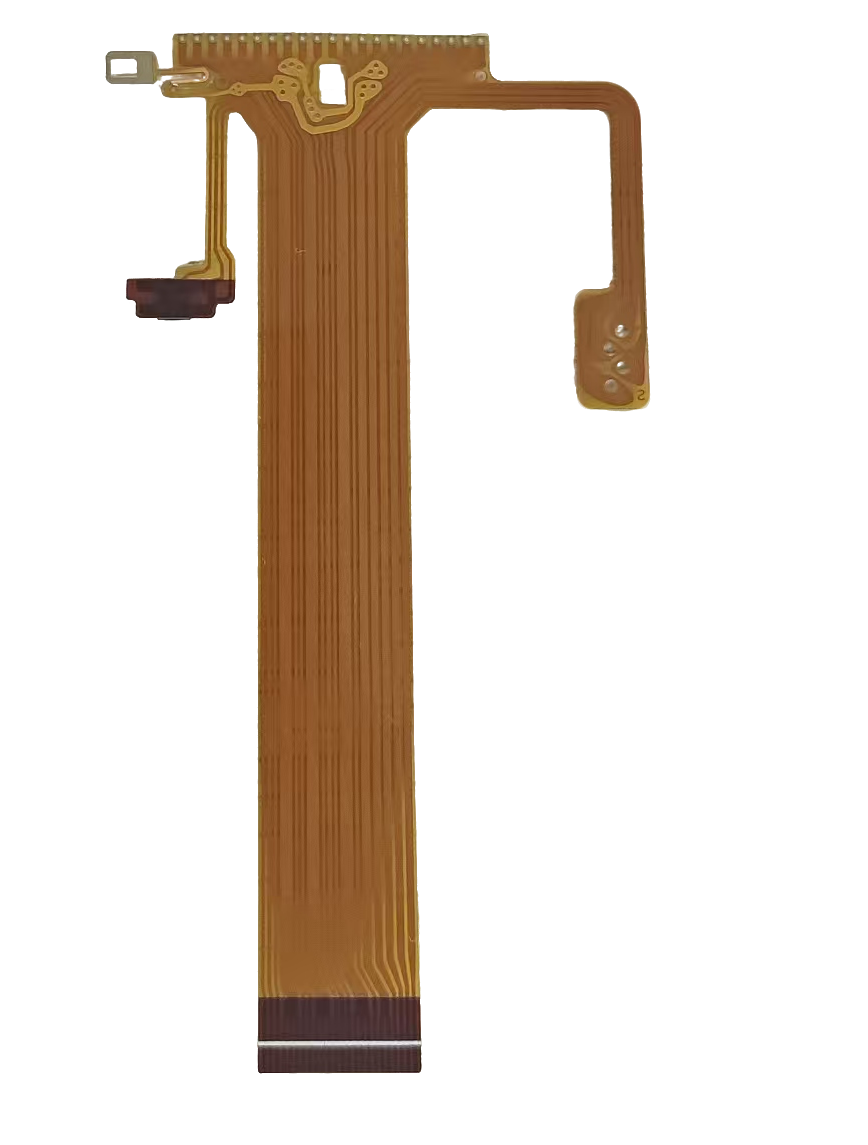

This product is a Photocoupler Sensing Flexible Printed Circuit Board Assembly (FPCBA) specifically designed for 3-inch thermal print modules, serving as the core signal transmission and photoelectric conversion hub of the print module. By integrating photocoupler sensors and high-density circuitry, it enables print head positioning detection, paper status monitoring, and data command transmission. As a key intermediary component connecting the main control board and the mechanical drive unit, it directly determines the response accuracy and reliability of the print module. This assembly utilizes flexible substrate material to accommodate dynamic bending environments within the module and employs ENIG (Electroless Nickel Immersion Gold) surface finish to ensure the stability of gold finger connections. It is suitable for embedded applications with stringent requirements on spatial layout and signal integrity, such as receipt printers and portable label printing devices.

II. Product Features

1.High-Precision Circuit Design: Line width 0.22mm, spacing 0.06mm, meeting the circuit density requirements of miniaturized equipment.

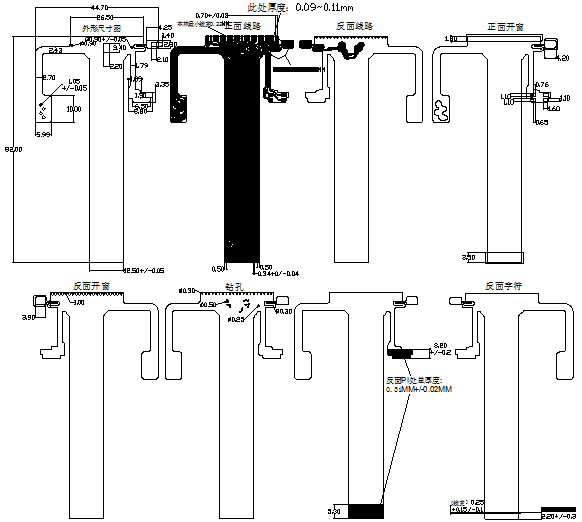

2.Irregular Shape Adaptability: Finished product dimensions 82*44.7mm, allowing flexible integration into confined spaces.

3.Integrated Photocoupler Sensing: Utilizes photocoupler components for non-contact signal detection, enhancing anti-interference capability.

4.Lightweight Flexible Substrate: Employs FPC (Flexible Printed Circuit) substrate material, suitable for dynamic bending scenarios.

III. Product Technical Support

1. Material Characteristics

Flexible Substrate: Bend-resistant and fatigue-resistant, suitable for print module environments with frequent vibrations.

Temperature Resistance: Solder mask and substrate can withstand SMT reflow soldering high temperatures (typical range 240-260°C).

Photocoupler Characteristics: Achieves electrical-optical-electrical signal isolation, preventing signal crosstalk.

2. Process Characteristics

Irregular Outline: Achieved via laser cutting to match the internal space of the module.

Gold Finger Connection Process: ENIG surface finish ensures plug-in stability and oxidation resistance.

SMT Assembly Technology: Supports high-density placement of miniature components such as 0402/0201.

IV. Product Manufacturing Process

FPC Blanking and Drilling: Minimum plated through hole (PTH): 0.25mm; minimum non-plated through hole (NPTH): 0.3mm.

Pattern Transfer and Etching: Forms circuits with 0.22mm line width / 0.06mm spacing.

Solder Mask and Surface Finish: Solder mask opening 1.9*1.1mm; ENIG process deposits nickel/gold layer.

SMT Assembly: Solder paste printing -> component placement -> reflow soldering -> cleaning.

Functional Testing and Packaging: Electrical testing followed by vacuum anti-static packaging.

V. Core QC Processes

Open/Short Circuit Test: Full-coverage detection of circuit conductivity using a flying probe tester.

ENIG Layer Thickness Control: X-ray fluorescence (XRF) thickness gauge monitors nickel/gold layer thickness (typical Ni: 3-5μm, Au: 0.05-0.1μm).

SMT Solder Joint AOI Inspection: Automated Optical Inspection (AOI) to identify defects like cold solder joints and solder bridges.

Photocoupler Alignment Accuracy Calibration: CCD imaging system ensures positional deviation between photocoupler and sensor is < ±0.1mm.

VI. Product Test Report

*Test Report for 3-Inch Thermal Print Module Photocoupler Sensing FPCBA*

VII. Product Affiliation: 3-Inch Thermal Print Module Photocoupler Sensing FPCBA Module

This photocoupler sensing FPCBA serves as the core for signal transmission and sensing control within the thermal print module. Together with the print head driver board, stepper motor, paper detection sensor, and main control board, it constitutes a complete printing system. The assembly enables electrical interconnection between modules via its flexible circuit structure and gold finger connectors. The ENIG process ensures stability in high-frequency signal transmission, while the photocoupler components facilitate non-contact paper positioning detection. The module incorporates a metal shielding layer and grounding design, effectively suppressing electromagnetic interference on sensing signals, thereby ensuring precise execution of print commands and reliable monitoring of paper status.

VIII. Product Final Attribution

The 3-Inch Thermal Print Module Photocoupler Sensing FPCBA is a core signal transmission and status monitoring component for thermal printing equipment. By integrating photocoupler sensors and high-density flexible circuitry, it enables paper positioning detection, print head drive signal transmission, and mechanical status feedback. As a critical intermediary within embedded control systems, it directly determines printing accuracy, response speed, and equipment reliability. It is widely used in receipt printers, portable label printing devices, retail terminals, industrial automation printing systems, and other scenarios, serving as an important hardware foundation for enhancing office efficiency and standardizing commercial service levels.
